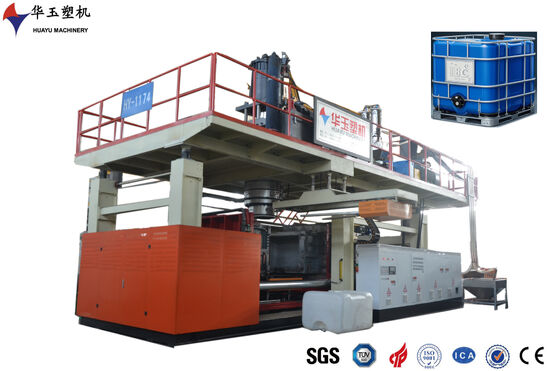

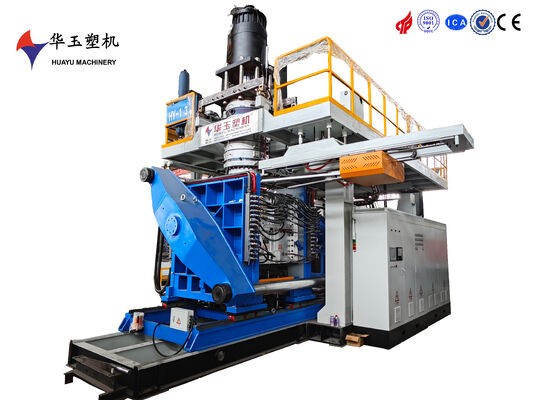

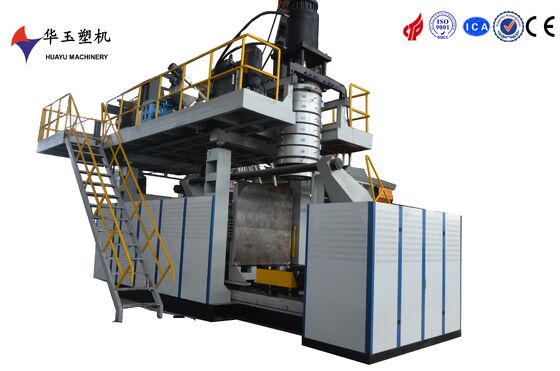

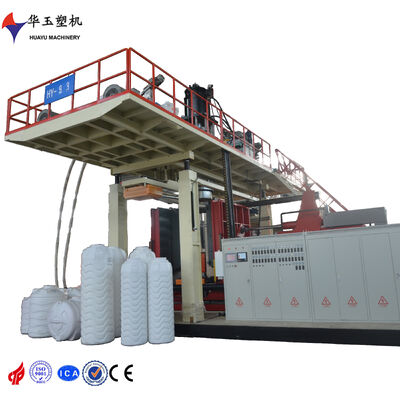

3000L 5-Layer Large Lightweight Water Tank Blow Molding Machine with Lightweight Cooling System

Lieu d'origine CHINE
Nom de marque HUAYU
Certification ISO9001 CE
Numéro de modèle HYBM3000-5 est une
Quantité de commande min 1 set
Prix 380000 USD
Détails d'emballage être démonté en plusieurs parties pour le transport en conteneurs
Délai de livraison 4 mois
Conditions de paiement T / t, l / c
Capacité d'approvisionnement 1 jeu 120 jours

Contactez-moi pour des échantillons gratuits et des coupons.

WhatsApp:0086 18588475571

Nous avons parlé.: 0086 18588475571

skype: sales10@aixton.com

Si vous avez des préoccupations, nous fournissons une aide en ligne 24 heures sur 24.

x
Détails sur le produit
Type de machine Machine de fabrication de bouteilles en plastique à grande vitesse Écran tactile Siemens
Servovalve Moog Capacité de plastification 800 kg / h
Boîte de vitesses Guomao Méthode de nettoyage Nettoyage facile
Matériau de trémie Acier inoxydable Commutateur d'air Schneider
Plage de capacité 500-3000L, 5 couches Système de refroidissement des moisissures Refroidissement de l'air
Pression d'air maximale 0,8 MPA Capacité 1000 litres
Moteur d'alimentation 2.2/2.2/2.2kw Garantie 1 an
Type de moisissure Station unique
Mettre en évidence

3000L water tank blow molding machine

,

5-layer lightweight water tank machine

,

blow molding machine with cooling system

Vous pouvez cocher les produits dont vous avez besoin et communiquer avec nous dans le babillard électronique.
Laisser un message
Description de produit

This lightweight blow molding machine with a 3000L capacity and 5-layer co-extrusion is designed for efficient production of lightweight plastic products. The water tank system ensures efficient cooling and heat dissipation, maintaining optimal operating temperatures and enhancing production efficiency. The machine's advanced control system offers precise control over the molding process, ensuring consistent product quality. Its lightweight design and reliable performance make it suitable for industries requiring lightweight plastic products. The water tank is designed for easy maintenance and long-term reliability, making this machine a cost-effective and efficient solution for your production needs. The integrated lightweight cooling system further reduces energy consumption, making it an ideal choice for manufacturers looking to optimize their production processes while minimizing environmental impact.

 Clamping  System

platen size

2200*2400*70mm(W*H*T)

smooth running, no noise; the clamping force is big

clamping cylinder

200+300*2

clamping cylinder stroke

2100mm



clamping force

2200KN



distance between platens

1100-3200mm



ax. mould size

1700*2200mm(W*H)



 blowing and cooling system

stretching stroke

according to products



blow pin up/down stroke

600mm



air seat stroke

400mm



imum air pressure

0.8Mpa



air consumption

3m3/min



Cooling method

Circulating water



Water pressure

0.3MPa



Cooling water consumption

75m3/h
