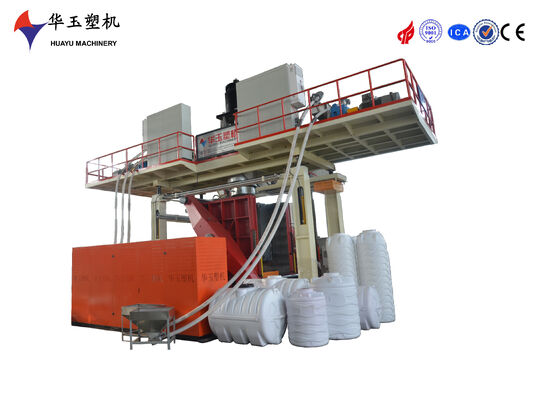

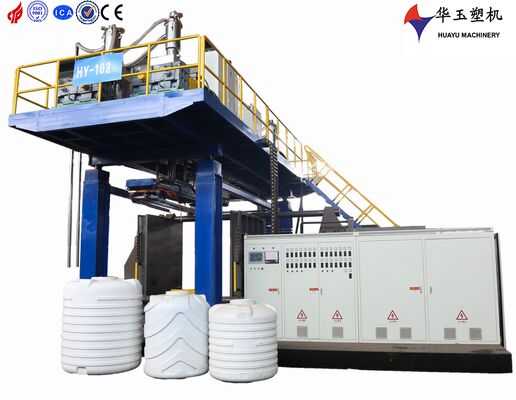

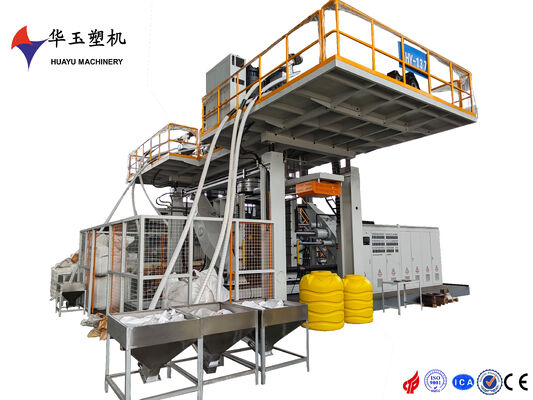

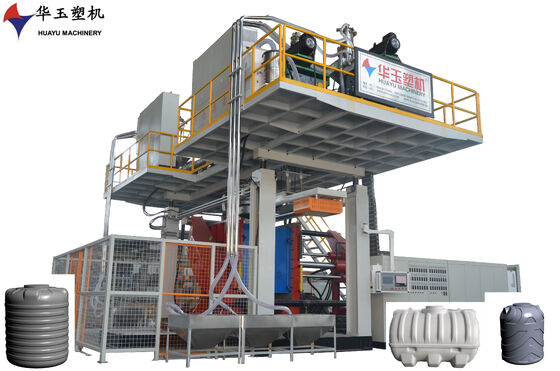

1500L Triple-Layer High Efficiency Water Tank Blow Moulding Machine for Plastic Drum Production

  • 1500L Triple-Layer High Efficiency Water Tank Blow Moulding Machine for Plastic Drum Production
  • 1500L Triple-Layer High Efficiency Water Tank Blow Moulding Machine for Plastic Drum Production
  • 1500L Triple-Layer High Efficiency Water Tank Blow Moulding Machine for Plastic Drum Production
  • 1500L Triple-Layer High Efficiency Water Tank Blow Moulding Machine for Plastic Drum Production
  • 1500L Triple-Layer High Efficiency Water Tank Blow Moulding Machine for Plastic Drum Production
Lieu d'origine Chine
Nom de marque HUAYU
Certification ISO9001 CE
Numéro de modèle HYBM-1500L, 3 couches
Quantité de commande min 1 ensemble
Prix 200000 USD
Détails d'emballage être démonté en plusieurs parties pour le transport en conteneurs
Délai de livraison 4 mois
Conditions de paiement T/T, L/C
Capacité d'approvisionnement 1 jeu 120 jours

Contactez-moi pour des échantillons gratuits et des coupons.

WhatsApp:0086 18588475571

Nous avons parlé.: 0086 18588475571

skype: sales10@aixton.com

Si vous avez des préoccupations, nous fournissons une aide en ligne 24 heures sur 24.

x
Détails sur le produit
Tension en suspens Puissance totale 435kw
Puissance moyenne 85 fois 6 fois 7.2 Productivité 10 à 24 pièces par heure
Diamètre de vis 110/120/110mm Rapport L/D de vis 28 ： 1
Capacité d'accumulateur 60 kg Taille de Max. Mould Le nombre d'étoiles est déterminé par la fréquence d'écoulement.
Pression d'air maximale 0,8 MPa Consommation d'air 1.5 m3/min
Mettre en évidence

1500L Water Tank Blow Moulding Machine

,

Triple-Layer Blow Molding Equipment

,

High Efficiency Plastic Drum Blow Molding Machine
Laisser un message
Description de produit
Cutting-Edge 3-Layer 1500L Water Bucket Blow Molding Equipment
Introducing our 1500L Triple-Layer Blow Molding Machine: a high-performance solution designed for the production of large, heavy-duty plastic drums and tanks. This machine is built to deliver exceptional quality, operational efficiency, and a rapid return on investment for your business.
Key Advantages
  • Triple-Layer Technology: Produce drums with an inner layer for chemical resistance, a middle layer for cost-saving recycled material, and an outer layer for UV protection and durability. This versatility ensures a superior product at a competitive cost.
  • High Efficiency & Output: Features a powerful extrusion system and a large accumulator head for stable, high-volume production. The advanced hydraulic clamping unit ensures consistent wall thickness and a fast cycle time, maximizing your daily output.
  • User-Friendly & Reliable: Equipped with a state-of-the-art PLC control system with a large touchscreen, making operation and parameter setting simple and intuitive. Its heavy-duty steel frame and precision components guarantee long-term stability and low maintenance.
  • Energy & Cost Savings: Incorporates energy-saving motors and optimized heating systems to significantly reduce operational costs. The ability to use recycled material in the middle layer further lowers your raw material expenses.
Applications
Ideal for manufacturing 1500L (and similar large-capacity) plastic drums and tanks for a wide range of industries, including chemicals, pharmaceuticals, food processing, and water treatment.
Choose our 1500L Triple-Layer Blow Molding Machine for a reliable, efficient, and profitable production solution.
Technical Specifications
Hydraulic System
Specification Value Features
Main Oil Tank Capacity 1200L Servo motor, less energy consumption, high efficiency, low noise
Main Oil Pump Gear Pump 160CC
Main Oil Pump Motor 57kW
Servo Oil Tank Capacity 200L
Servo Oil Pump Model Plunger Pump 22
Servo Oil Pump Motor 7.5kW
Electronic System
Component Specification
Main Operation Panel Touch Screen 9"
Control System PLC
Thickness Control Points 100 Points
Temperature Control PLC Module
1500L Triple-Layer High Efficiency Water Tank Blow Moulding Machine for Plastic Drum Production 0
