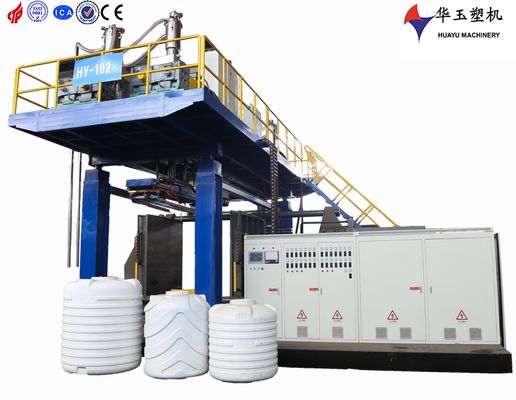

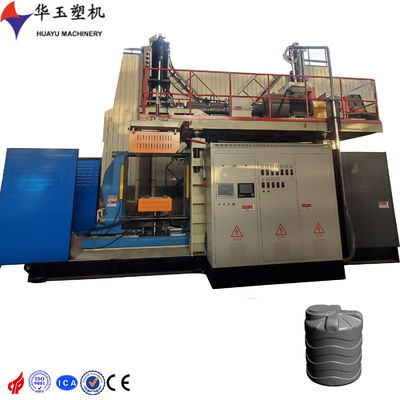

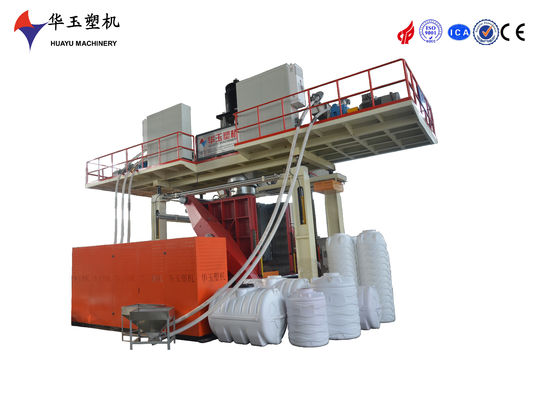

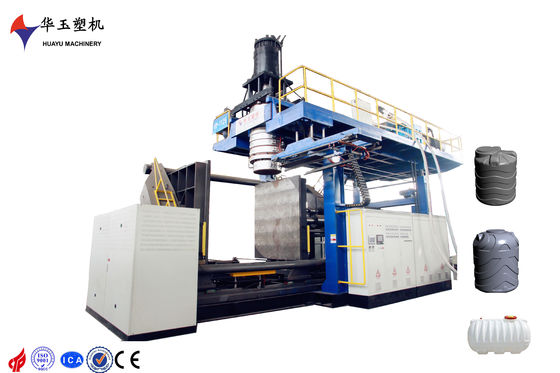

2000L 12-Layer Water Tank Blow Molder – Precision Engineered IBC Tank Blow Molding Machine for Large-Capacity Production

  • 2000L 12-Layer Water Tank Blow Molder – Precision Engineered IBC Tank Blow Molding Machine for Large-Capacity Production
  • 2000L 12-Layer Water Tank Blow Molder – Precision Engineered IBC Tank Blow Molding Machine for Large-Capacity Production
  • 2000L 12-Layer Water Tank Blow Molder – Precision Engineered IBC Tank Blow Molding Machine for Large-Capacity Production
  • 2000L 12-Layer Water Tank Blow Molder – Precision Engineered IBC Tank Blow Molding Machine for Large-Capacity Production
  • 2000L 12-Layer Water Tank Blow Molder – Precision Engineered IBC Tank Blow Molding Machine for Large-Capacity Production
Lieu d'origine Chine
Nom de marque HUAYU
Certification ISO9001 CE
Numéro de modèle HYBM-500-2000L, 12 couches
Quantité de commande min 1 ensemble
Prix 360000 USD
Détails d'emballage être démonté en plusieurs parties pour le transport en conteneurs
Délai de livraison 4 mois
Conditions de paiement T/T, L/C
Capacité d'approvisionnement 1 jeu 120 jours

Contactez-moi pour des échantillons gratuits et des coupons.

WhatsApp:0086 18588475571

Nous avons parlé.: 0086 18588475571

skype: sales10@aixton.com

Si vous avez des préoccupations, nous fournissons une aide en ligne 24 heures sur 24.

x
Détails sur le produit
Tension en suspens Puissance totale 648.5 kW
Puissance moyenne 320KW Productivité 10 à 24 pièces par heure
Diamètre de vis 100 mm*7 Rapport L/D de vis 28 ： 1
Capacité d'accumulateur 60 kg Taille de Max. Mould Le nombre d'étoiles est déterminé par la fréquence d'écoulement.
Pression d'air maximale 0,8 MPa Consommation d'air 2.3m3/min
Mettre en évidence

12-Layer Co-Extrusion Water Tank Blow Molder

,

2000L Large-Capacity Blow Molding Machine

,

Precision Engineering IBC Tank Blow Molding Machine
Laisser un message
Description de produit
2000L 12-Layer Water Tank Blow Molder – Precision Crafted
Core Advantages
  • 12-Layer Co-Extrusion Superiority: Multi-layer structure ensures exceptional barrier performance, pressure resistance and durability, ideal for long-term water storage without leakage or deformation.
  • 2000L Large-Capacity Efficiency: Engineered to mold full-size 2000L water tanks in one single cycle, drastically cutting production time and boosting overall throughput.
  • Precision Engineering for Consistency: High-precision control system guarantees uniform wall thickness across every layer, eliminating defects and ensuring stable product quality batch after batch.
  • Industrial-Grade Reliability: Robust frame and high-quality components are built to withstand heavy-duty continuous operation, minimizing downtime and maintenance costs.
  • Versatile Material Compatibility: Adaptable to a wide range of raw materials including HDPE, PP and recycled plastics, meeting diverse production needs and sustainability goals.
  • User-Centric Intelligent Operation: Intuitive control interface simplifies operation and parameter adjustment, reducing the learning curve for operators and improving production efficiency.
Technical Specifications
Hydraulic System
Main Oil Tank Capacity 1200L Servo motor, less energy consumption, high efficiency, low noise
Main Oil Pump Gear Pump 163CC
Main Oil Pump Motor 48kW
Servo Oil Tank Capacity 200L
Servo Oil Pump Model Plunger Pump 22
Servo Oil Pump Motor 7.5kW
Electronic System
Main Operation Panel Touch Screen 12"
Control System PLC
Thickness Control Points 200 Points
Temperature Control PLC Module
2000L 12-Layer Water Tank Blow Molder – Precision Engineered IBC Tank Blow Molding Machine for Large-Capacity Production 0
