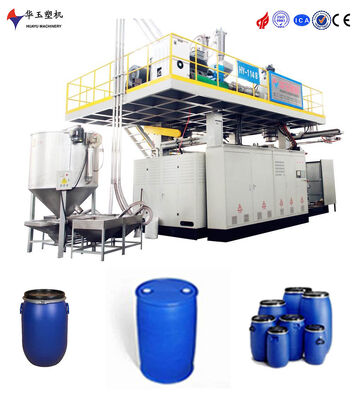

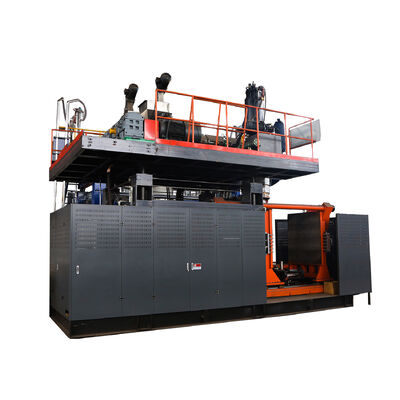

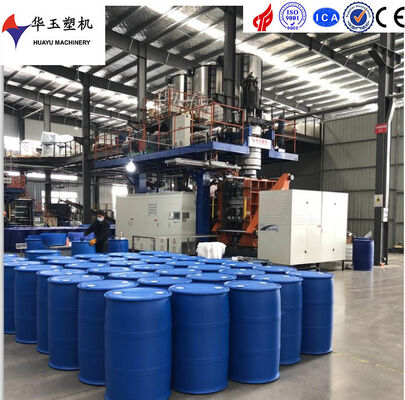

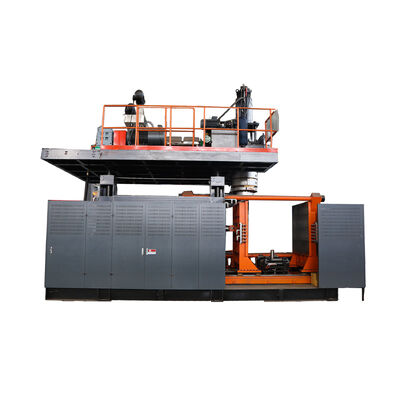

250L Capacity Double-Ring Drum Blow Molding Machine with 30:1 L/D Ratio and Energy-Saving Operation

  • 250L Capacity Double-Ring Drum Blow Molding Machine with 30:1 L/D Ratio and Energy-Saving Operation
  • 250L Capacity Double-Ring Drum Blow Molding Machine with 30:1 L/D Ratio and Energy-Saving Operation
  • 250L Capacity Double-Ring Drum Blow Molding Machine with 30:1 L/D Ratio and Energy-Saving Operation
  • 250L Capacity Double-Ring Drum Blow Molding Machine with 30:1 L/D Ratio and Energy-Saving Operation
  • 250L Capacity Double-Ring Drum Blow Molding Machine with 30:1 L/D Ratio and Energy-Saving Operation
Lieu d'origine Chine
Nom de marque HUAYU
Certification ISO9001 CE
Numéro de modèle HYBM-250L-1
Quantité de commande min 1 ensemble
Prix 260000 USD
Détails d'emballage être démonté en plusieurs parties pour le transport en conteneurs
Délai de livraison 4 mois
Conditions de paiement T/T, L/C
Capacité d'approvisionnement 1 jeu 120 jours

Contactez-moi pour des échantillons gratuits et des coupons.

WhatsApp:0086 18588475571

Nous avons parlé.: 0086 18588475571

skype: sales10@aixton.com

Si vous avez des préoccupations, nous fournissons une aide en ligne 24 heures sur 24.

x
Détails sur le produit
Diamètre de vis 150MM R/D 30: 1
Baiser 38CrMoAlA, nitrure Sortir 30 pièces/heure
Alimentation en air 0,8×6（MPa × Mètre cube par minute） Puissance totale 324,5 kW
Consommation moyenne d'énergie (AEC) Environ 180 kW par heure
Mettre en évidence

250L Capacity Drum Blow Molding Machine

,

30:1 L/D Ratio Blow Molding Apparatus

,

Energy-Saving Operation Double-Ring Drum Blow Molder
Laisser un message
Description de produit
250L 1-Layer Double-Ring Drum Blow Molding Machine
Key Advantages
  • High Production Efficiency: Fast cycle times and continuous molding capability deliver 50+ 250L double-ring drums per hour, significantly boosting production output for large-scale manufacturing.
  • Precision Molding Performance: Advanced servo control system and precise die head design ensure uniform wall thickness and consistent double-ring structural dimensions, meeting strict industrial standards.
  • Energy-Saving Operation: Energy-efficient motor and heat recovery technology reduce power consumption by 15-20% compared to traditional machines, cutting long-term operational costs.
  • User-Friendly Operation: Intuitive touch screen HMI with pre-set molding parameters minimizes training time and simplifies daily production adjustments.
  • Durable Equipment Build: High-strength steel frame and wear-resistant components provide a service life of over 10 years with minimal maintenance.
  • Versatile Compatibility: Optimized for 250L 1-layer double-ring drums but adjustable for different plastic materials (HDPE/PP) and similar-sized barrel products.
  • Stable Double-Ring Forming: Dedicated mold and air pressure control unit ensure rings have strong load-bearing capacity without deformation, meeting stacking and transportation requirements.
  • Low Material Waste: Precision material feeding system and optimized parison control reduce plastic scrap rate to less than 3%, lowering raw material costs.
Energy Configuration Specifications
Component Specification
Extruder Driving Power 160kw Siemens Independent Air Cooler
Hydraulic Main System Motor Power 35.6KW Huichuan Servo Motor
Wall Thickness Control Motor Power 7.5 KW
Heating Power of Extrusion System 7 pcs * 7KW/pc
Power of Die Heating 7 pcs * 6KW/pc
Air Supply 0.8*6 (MPa * Cubic meter per minute)
Cooling Water Consumption 0.3*20°*30 (MPa * degree * Cubic meter per hour)
Total Power 324.5KW
Average Energy Consumption (AEC) Approximately 180kw per hour
This industrial blow molding machine is engineered for high-volume production of 250L double-ring drums, combining precision engineering with energy-efficient operation for optimal manufacturing performance.
